Description
Kevlar® brand fiber diaphragm FST™ midrange
Rohacell® diaphragm bass
Nautilus™ Headshell
Matrix™ enclosure
Flowport™ airflow guide orifice

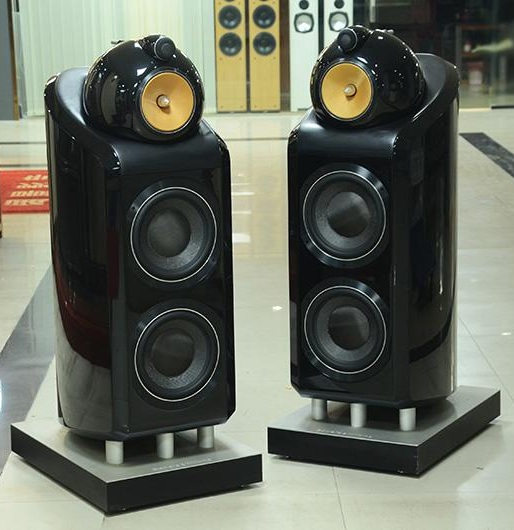

3-way bass-reflex loudspeaker system
Drive unit:
1 x ø25 mm (1 inch) diamond dome tweeter
1 x ø150 mm (6 in) Kevlar® fiber diaphragm FST™ midrange driver
2 x ø250 mm (10 inch) Rohacell® diaphragm bass drivers
Frequency range: 25Hz and 33kHz, -6 dB
Frequency response: 32Hz – 28kHz, ±3 dB on reference axis
Diffusivity (reference response): within 2 dB
Horizontal: greater than 60° (radians)
Vertical: greater than 10° radians
Sensitivity: 90 dB SPL (2.83 volts, 1 meter)
Harmonic distortion: 2nd and 3rd harmonics (90 dB, 1 meter), <1% 45Hz – 100kHz, <.5% 80Hz – 100kHz
Rated impedance: 8 ohms (minimum 3.1 ohms)
Frequency division: 350Hz, 4kHz
Dimensions (excluding feet):
Height: 1180 mm (46.5 inches)
Width: 450 mm (17.7 inches)
Depth: 645 mm (25.4 inches)
Net weight: 125 kg (275 lbs)
