Description
Output Level:
Nominal level: 1.55 V RMS
Maximum output level (balanced): 9.6 V RMS
Maximum output level (unbalanced): 4.8 V RMS
Output impedance: 50 ohms
Frequency Response – Any level up to these values of 10 V RMS:
+/- 0 dB, 20 Hz to 20 kHz
+/- 3 dB, 0.2 Hz to 1.2 MHz
Input Sensitivity:
Nominal level: 100 mV
Saturation level: 5 V RMS
Nominal input impedance: 39 kOhms
7 line inputs each with individual input level adjustment: -12 to 12 dB
Input Level:
Maximum input level (balanced): 9.6 V RMS
Maximum input level (unbalanced): 4.8 V RMS
Group Delay (Propagation Delay): <300 ns, frequency stable from DC to 200 kHz
Distortion THD (1 V RMS output level, 80 kHz measurement bandwidth 600 ohm termination impedance):
THD Unbalanced input to unbalanced output 0.0002 % Frequency flat
THD balanced input to balanced output 0.0001 % frequency flat
IMD Unbalanced input to unbalanced output 0.0002 %
IMD balanced input to balanced output 0.0001 %
Speed (slope): 2500 V/us, rise time: < 400 ns
noise:
Line input signal-to-noise ratio: > 126 dB (0.01 Hz – 10 MHz)
Weighted ASA A: > 136 dB
Power Supply: Nominal Line Voltage: 115 V or 230 V Input Voltage Range: +/- 15% Maximum Power Consumption: 70 W
Grounding: Separate ground and signal ground. Optional connection between ground and signal ground to eliminate any ground loops
Safety features: Automatically switches to silent mode when AC power is disconnected or interrupted Automatically prevents tape looping
Dimensions and weight:

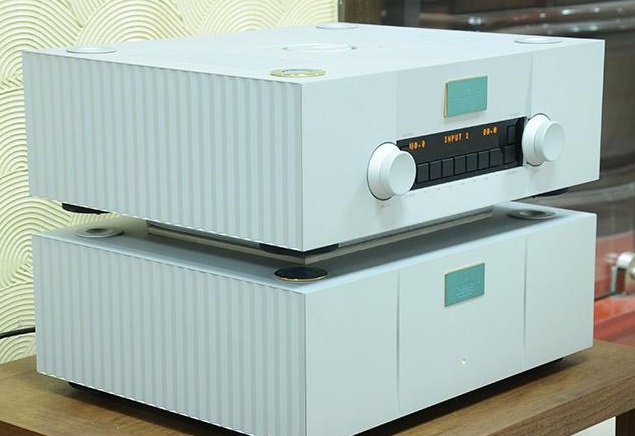

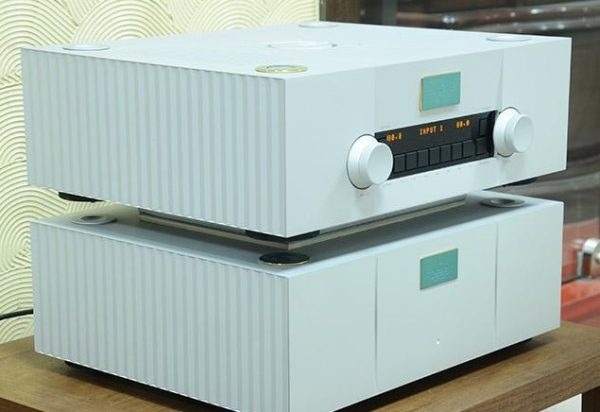

Preamplifier 44 W x 16 H x 40.6 D (cm) – 17.3 W x 6.3 H x 16 D (in), 20 kg
Power Supply 44 W x 16 H x 39 D (cm) – 17.3 W x 6.3 H x 15.4 D (in), 25 kg
