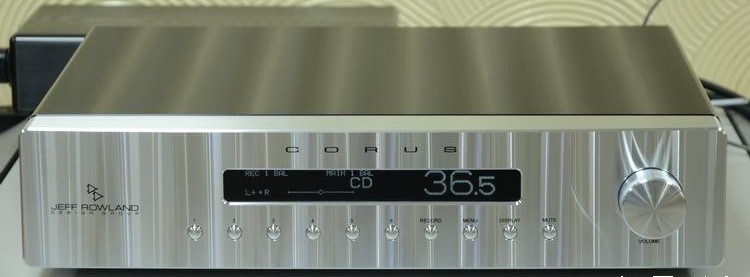

Description
Overall Gain: Independently Programmable 0 to 20 dB on each input
Gain Range: 99.5 dB, 199 Equal Increments
Gain Resolution: 0.5 dB, +/- 0.03 dB Over Entire Range
Frequency Response: 10 Hz – 300 kHz, -3 dB @ 8 ohms
Maximum Input Level: 13.5 volts (RMS) @ 0 dB Gain
Maximum Output: Level 13.5 volts (RMS)
THD + Noise: < .003% @ 2 volt (RMS) Output, 50 Hz – 20 kHz
Signal-to-Noise Ratio: > 100 dB
Common Mode Rejection Ratio: > 90 dB, 20 Hz – 20 kHz
Channel Separation: 99.5 dB
Input Impedance: 40k ohms Balanced or Unbalanced
Output Impedance: 60 ohms Balanced or Unbalanced
Inputs: 4 pair Balanced (XLR), 2 pair Unbalanced (RCA)
Outputs: 2 pair Balanced (XLR), 2 pair Unbalanced (RCA) for
Main Out
1 pair Balanced (XLR), 1 pair Unbalanced (RCA) for
Record Out
Power Consumption: 15 watts
Power Supply: Universal Voltage Input Power Factor Corrected
Power Supply
Display: 320 x 32 dot Vacuum Fluorescent Display (VFD)
Preamplifier Weight: 22 lbs. / 10 kg
Power Supply Weight: 6 lbs / 2.7 kg
Preamplifier Dimensions: H/W/D 3.9” x 15.5” x 12.3”
(99mm x 394mm x 311mm)
Power Supply Dimensions: H/W/D 3.9” x 4.7” x 11”
(99mm x 119mm x 279mm)
