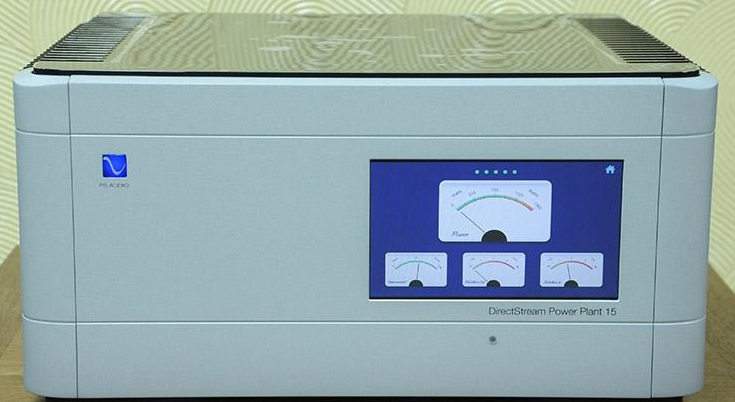

Description
Unit Dimensions: 43 x 36 x 21.5 cm (WxDxH)
Unit Weight: 33 kg
Shipping Dimensions: 58 x 52 x 34 cm (WxDxH)
Shipping Weight: 38 kg
Nominal Input Voltage: 200 -285 V AC
Maximum Continuous Load: 1600 VA
Maximum Peak Load: 2000 VA
Voltage Regulation: 1 V
Output Distortion (Resistive Load): < 0.9%; 0.2% typical
Output Distortion (Reactive Load): < 0.9%; 0.2% typical
Output Impedance: < 0.008 Ohm
Noise Reduction: 100 kHz – 2 MHz > 80 dB
Efficiency: > 85% (at 1200 VA)
Input Frequency: 45 – 65 Hz
Under Voltage Limit: Continuous -10% of setting 15 sec duration -15% of setting
Over Voltage Limit: Continuous 5% of setting 15 sec duration 10% of setting
Energy Dissipation: 3670 J
Peak Current Surge: 84000 A
Max Surge Voltage: 6000 V
Clamp Level: 800 V
DC Trigger Configuration: Tip Positive
DC Trigger Voltage: 5 – 15 V DC
